產品品牌：美國FLIR

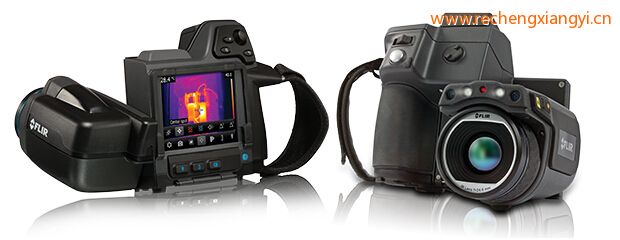

產品型號：T600
Accuracy +/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal
為確保設備可靠運行，您需要能夠幫助您快速查找和報告問題的故障排除工具。這正是 FLIR 紅外相機不可或缺的原因所在。FLIR 紅外相機能夠使您盡早察覺由電阻和機械磨損產生的不可見熱量，紅外非致冷熱像儀，以助您防范代價高昂的停機時間和潛在危險。在所有熱像儀產品中，手持式紅外熱像儀，T 系列產品是您捕捉和分享結果最輕松、最快捷的選擇，是釋放 FLIR 能量的終極方案！
T 系列相機具有無與倫比的靈活性，紅外熱像儀用途，能夠非常輕松地瞄準、聚焦和使用。
借助無線途經或 FLIR 工具（PC 或 Mac 版）分享圖像和嵌入表數據。
| T420 | T440 | T460 | T600 | T620 | T640 | T660 | |
|---|---|---|---|---|---|---|---|
| Accuracy | +/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal | +/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal | +/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal | +/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal | |||
| Thermal Resolution |
76,800 (320 × 240) |
172,800 (480 × 360) |
307,200 (640 × 480) |
||||
| Thermal Sensitivity | <0.04°C @ 30°C | <0.03°C @ 30°C | <0.04°C @ 30°C | <0.03°C @ 30°C | <0.02°C @ 30°C | ||
| Temperature Range |
-4°F to 1,202°F (-20°C to 650°C) Optional to 2,192°F (1,200°C) |
-4°F to 2,192°F (-20°C to 1,200°C) |
-4°F to 2,732°F (-20°C to 1,500°C) |
-40°F to 1202°F (-40°C to 650°C) |
-40°F to 1,202°F (-40°C to 650°C) Optional: to 3,632°F (2,000°C) |
-40°F to 3,632°F (-40°C to 2,000°C) |
|
| Measurement Presets | 7 presets: center spot; hot spot (box max); cold spot (box min); 3 spots; hot spot - spot (box max + spot + delta); hot spot - temperature (box max + ref temp + delta); no measurements | 6 presets: center spot; hot spot (box max); cold spot (box min); no measurements; user preset 1; user preset 2 | |||||
| UltraMax™ | Included | N/A | Included | ||||
| User Presets | N/A | Included | |||||
| Spot Mode | 5 moveable | 10 moveable | |||||
| Area Mode | Included | ||||||
| Profile | N/A | Included | N/A | Included | |||
| Color Alarm (isotherm) | Blue below, red above, yellow interval | ||||||
| Frame Rate | 60 Hz | 30 Hz | |||||
| Field of View | 25° × 19° | ||||||
| Optional Lenses | 6°, 15° Tele, 45° & 90° Wide; Close up: 100 μm, 50 μm | 25°, 7° & 15° Tele, 45° & 80° Wide; Close up: 100 μm, 50 μm, 25 μm | |||||
| Focus | Manual & Automatic | Manual, Automatic, and Continuous | |||||
| Continuous Auto Focus | N/A | Included | |||||
| Min. Focus Distance | 1.31 ft (0.4 m) | 0.82 ft (0.25 m) | |||||
| Radiometric Recording | N/A | CSQ to memory card | N/A | CSQ to memory card | |||
| Radiometric JPEG via USB | Included | ||||||
| Radiometric JPEG to SD Card | Included | ||||||
| MPEG4 to SD (non-radiometric IR) | Included | ||||||
| MPEG4 via USB (non-radiometric IR/Visual) | Included | ||||||
| Radiometric streaming via USB | Included | ||||||
| Display Size | 3.5” | 4.3” | |||||
| Touchscreen | Standard | Capacitive touch screen | |||||
| Auto Orientation | Included | ||||||
| MSX Thermal Image Enhancement | Included | ||||||
| Viewfinder | N/A | Included | |||||
| Color (Palettes) | 7: Arctic, White hot, Black hot, Iron, Lava, Rainbow, and Rainbow High Contrast | ||||||
| Battery Operating Time | >4 hrs | >2.5 hrs | |||||
| Built-in Digital Camera | 3.1 MP | 5 MP | |||||
| Built-in Illuminator LED | Included | ||||||
| Digital Zoom | 2× and 4× | 2×, 4× and 8× | 2× and 4× | 2×, 4× and 8× | |||
| MeterLink® connectivity | Included | ||||||
| Laser Pointer + Laser Locator (on IR image) | Included | ||||||
| Compass | Included | N/A | Included | ||||
| GPS | N/A | Included | |||||
| IR Window Correction | Included | ||||||
| Difference temperature/Delta T | Included | ||||||
| Picture in Picture | Scalable & Moveable | ||||||
| Notes | Included | ||||||
| Sketch on IR/Visual Image | N/A | Draw on screen or add predefined stamps | |||||
| Voice/Text Annotation | Included | ||||||
| FLIR Tools for PC and Mac | Included | ||||||
| FLIR Tools Mobile app (Wi-Fi) | Included | ||||||
| Streaming Video via app (Wi-Fi) | Included | ||||||
| Remote Control via app (Wi-Fi) | Included | ||||||
| Weight (including battery) | 1.94 lbs (0.88 kg) | 2.87 lbs (1.3 kg) | |||||
*免責聲明：規格如有變更，遠紅外熱像儀維修，恕不另行通知。可用性相機型號和附件受區域市場的考慮。
